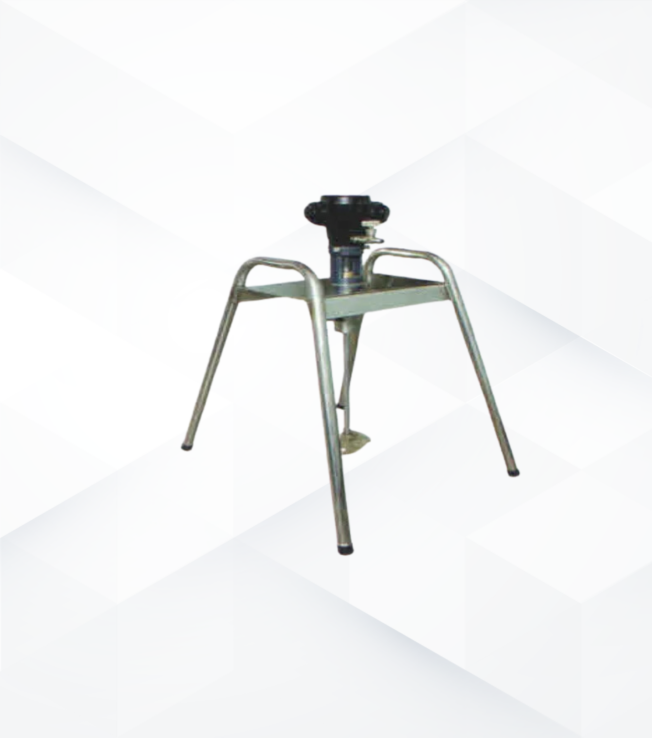

PNEUMATIC ROTATORY STIRRER

Paint stirrer is operated on pneumatic compressor air, for homogeneous
mixing of paint , to avoid settling heavy particles, metallic particles,
resin, pigmentation etc. at the bottom of the container.
Stirrer can be mounted on stand, pressure Feed container.

DESCRIPTION :

Paint stirrer is operated on pneumatic compressor air, for mixing of

paint homogeneously, to avoid settling of heavy particles, metallic
pigments at the bottom of the container.

TECHNICAL SPECIFICATION :

A) PNEUMATIC STIRRER : TI-4-40

1. Max. air required : 2-4 kgf/cm2,
2. Air consumption : Max 3 cfm.
3. Mounting : Four leg Stand / Side / Flange
4. Air connection : 1/4 ” BSP.
5. Type : Rotary. 6. Torque : 1.27 Nm. 7. HP : 0.130

8.Speed : 800 Max.
9. Shaft Length : 410 mm.
8. Impeller Diameter : 90 mm.
